[ Drawings ] — 2024 / 2025

Drawn by hand

Ten projects start on paper. These are the sheets I keep for myself — an oil painting of the Shanghai river at night, a pencil study of Pudong, and the measured drawings from the Notre Dame architecture camp. Nothing here is rendered; every line was drawn by hand.

Shanghai, night and line

[ 2024.08 ]

Oil painting of Shanghai street life at night — **[ 01 ]**Shanghai street life at night · oil on canvas · 2024.08

Pencil sketch of Pudong, Shanghai City — **[ 02 ]**Pudong, Shanghai City · pencil sketch · 2024.08

Notre Dame architecture camp

[ Summer 2024 ]

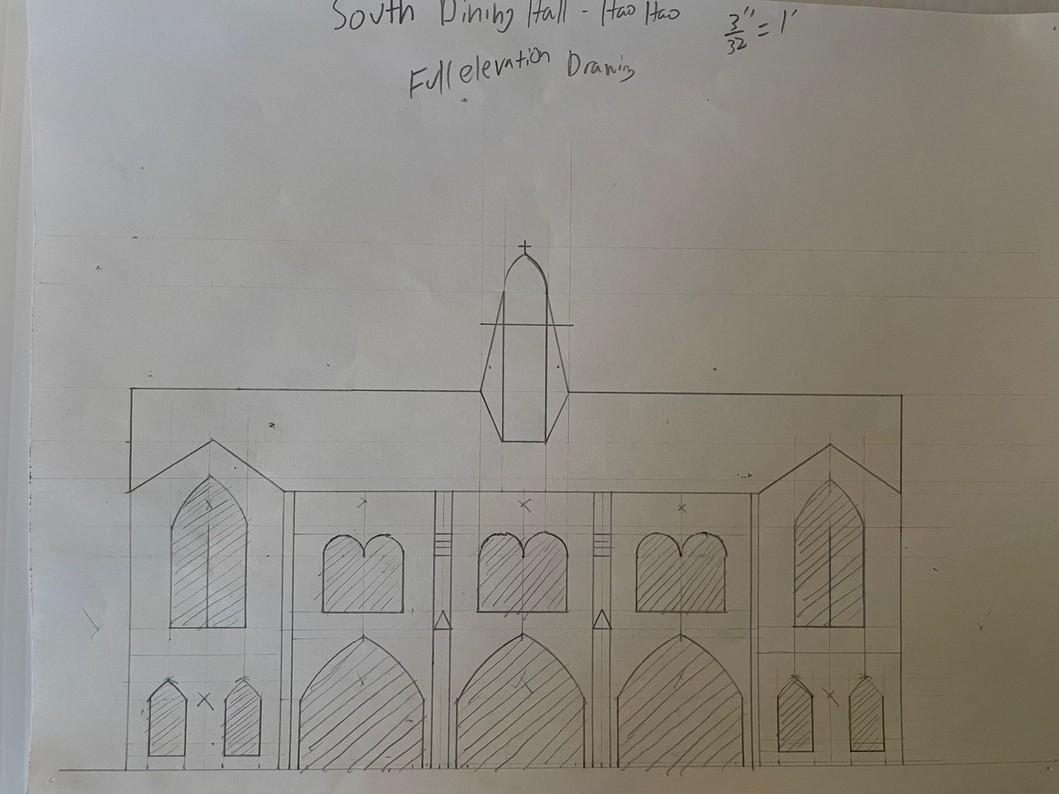

Pencil elevation of the South Dining Hall — **[ 03 ]**South Dining Hall · full elevation · 3/32 in = 1 ft

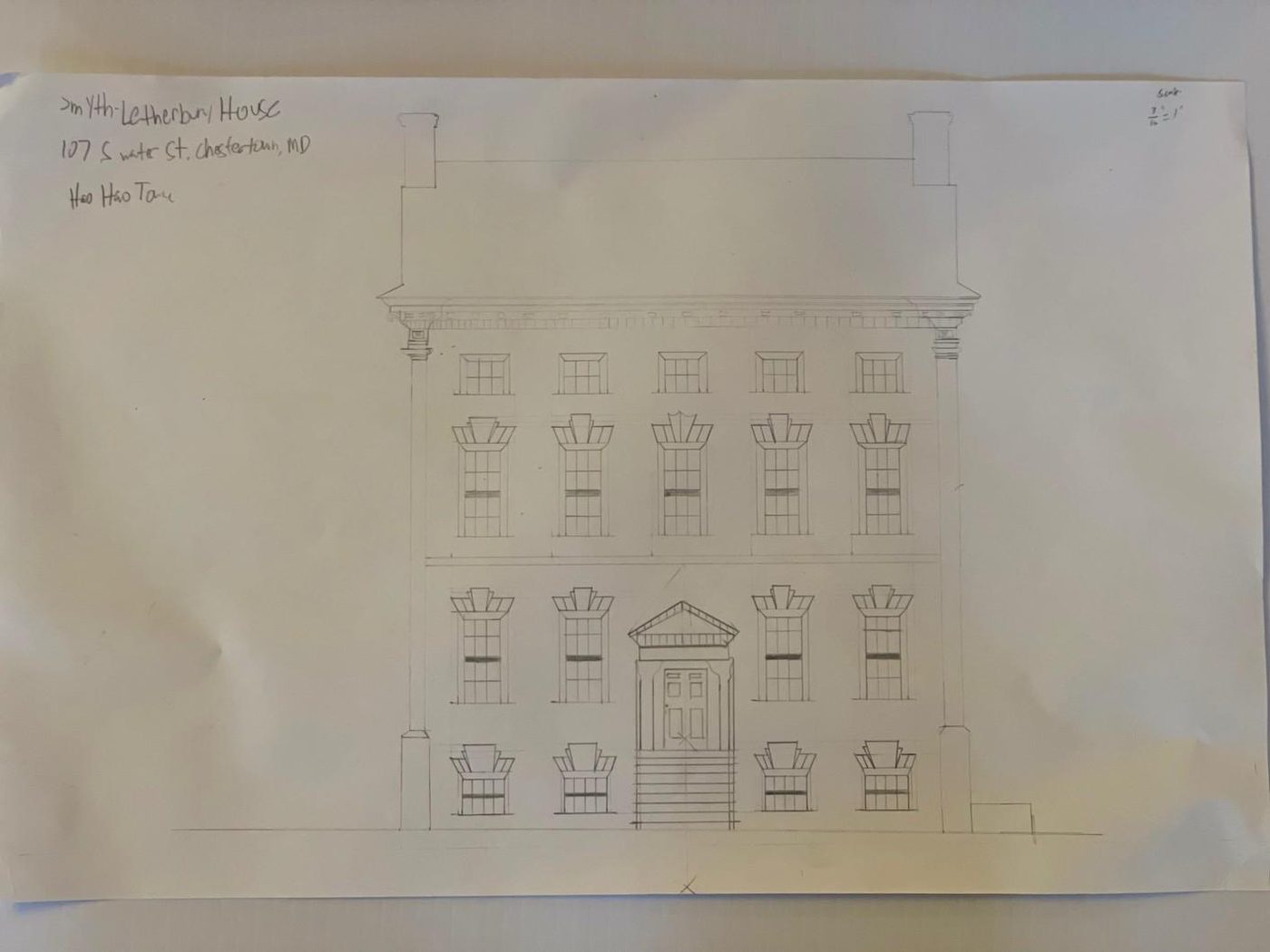

Measured pencil façade of the Leatherbury House, Chestertown — **[ 04 ]**Leatherbury House · 107 Water St, Chestertown MD · measured façade

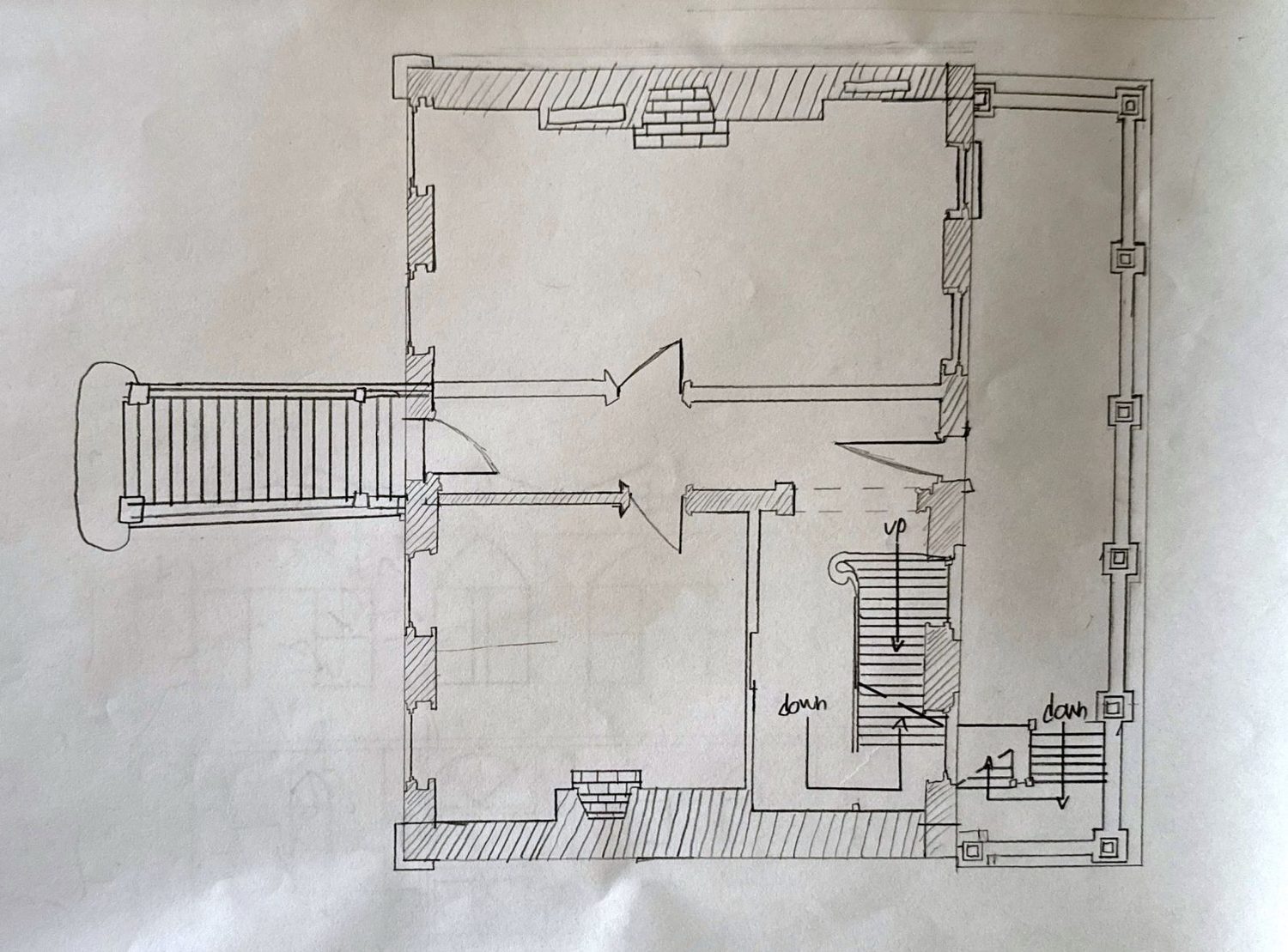

Measured pencil plan with stair and hatched walls — **[ 05 ]**Measured plan · stair, door swings and hatched masonry

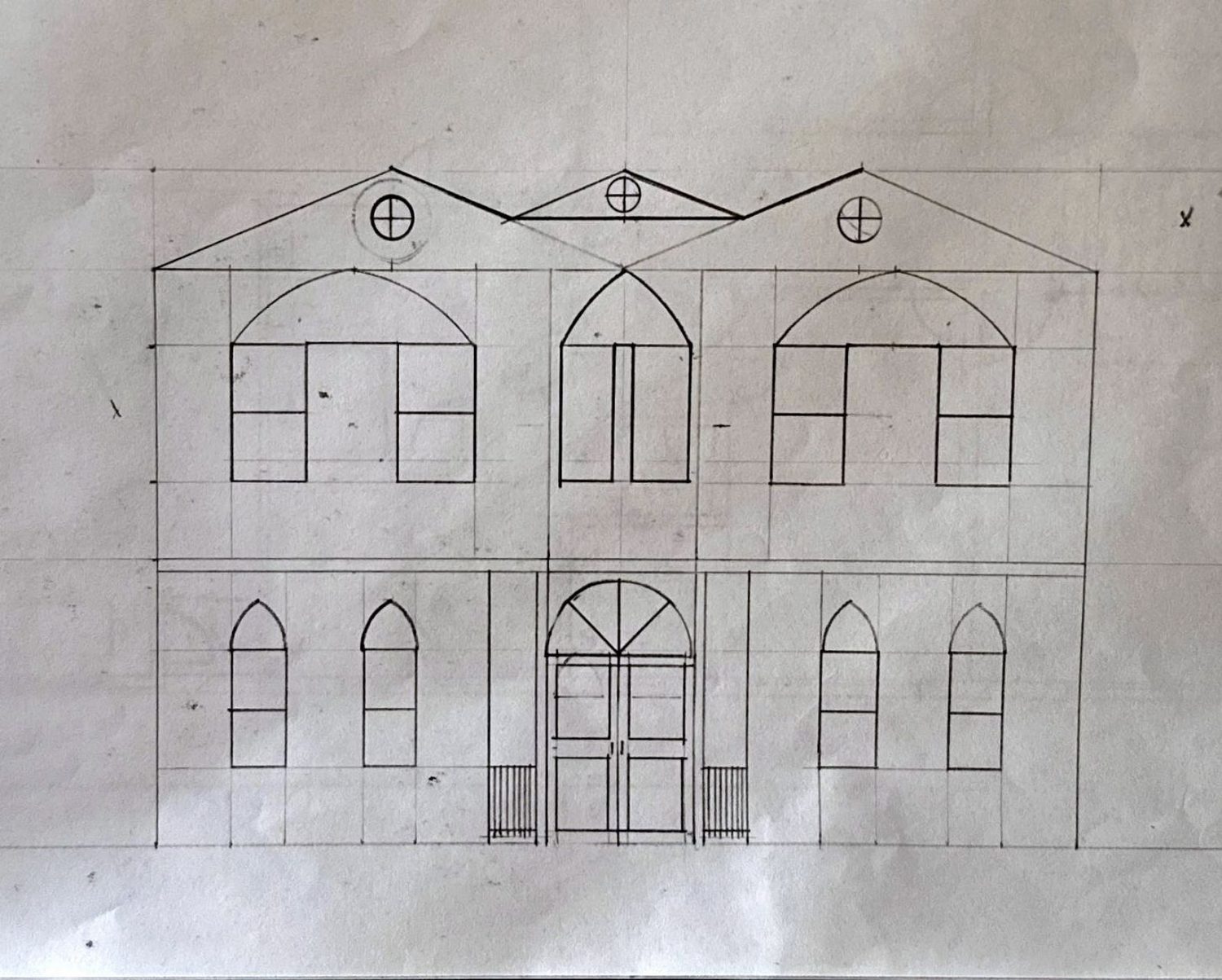

Pencil façade study with three pediments and arched openings — **[ 06 ]**Façade study · three pediments, oculi and arched openings

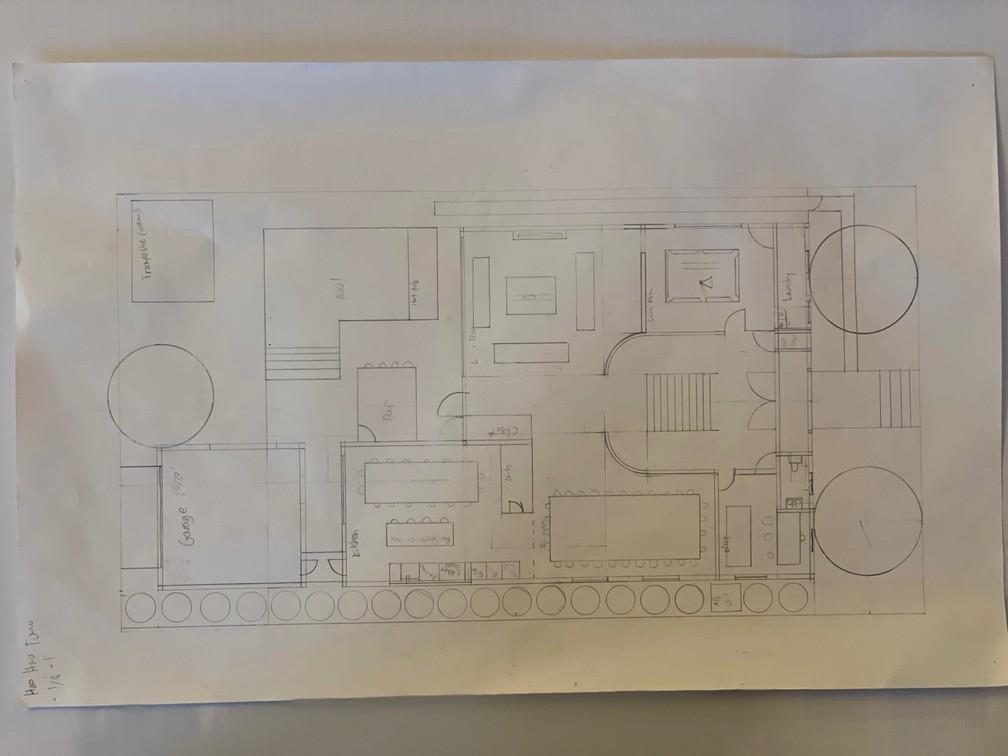

Pencil plan study with rooms, terrace and round columns — **[ 07 ]**Plan study · rooms, terrace and round columns

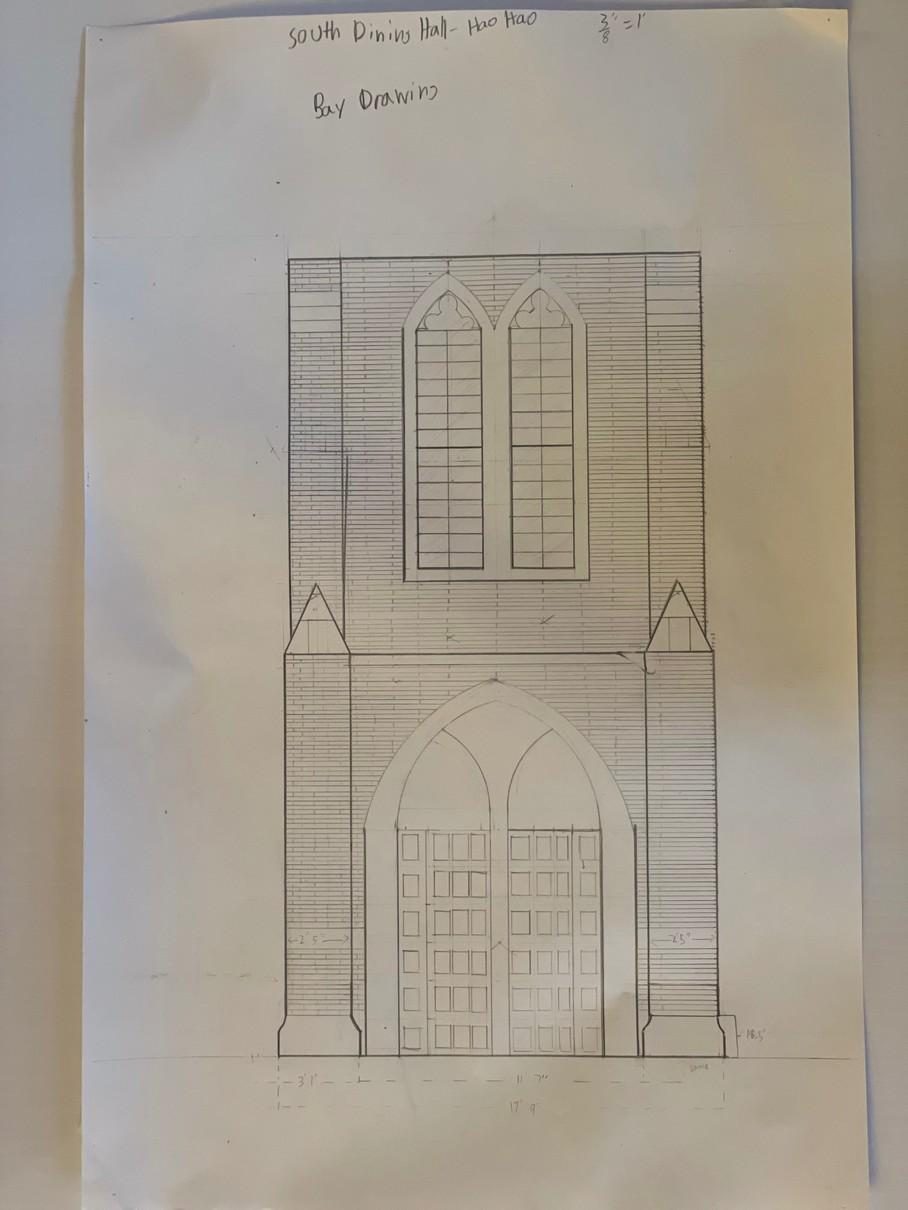

Pencil bay drawing of the South Dining Hall — **[ 08 ]**South Dining Hall · bay drawing · 3/8 in = 1 ft

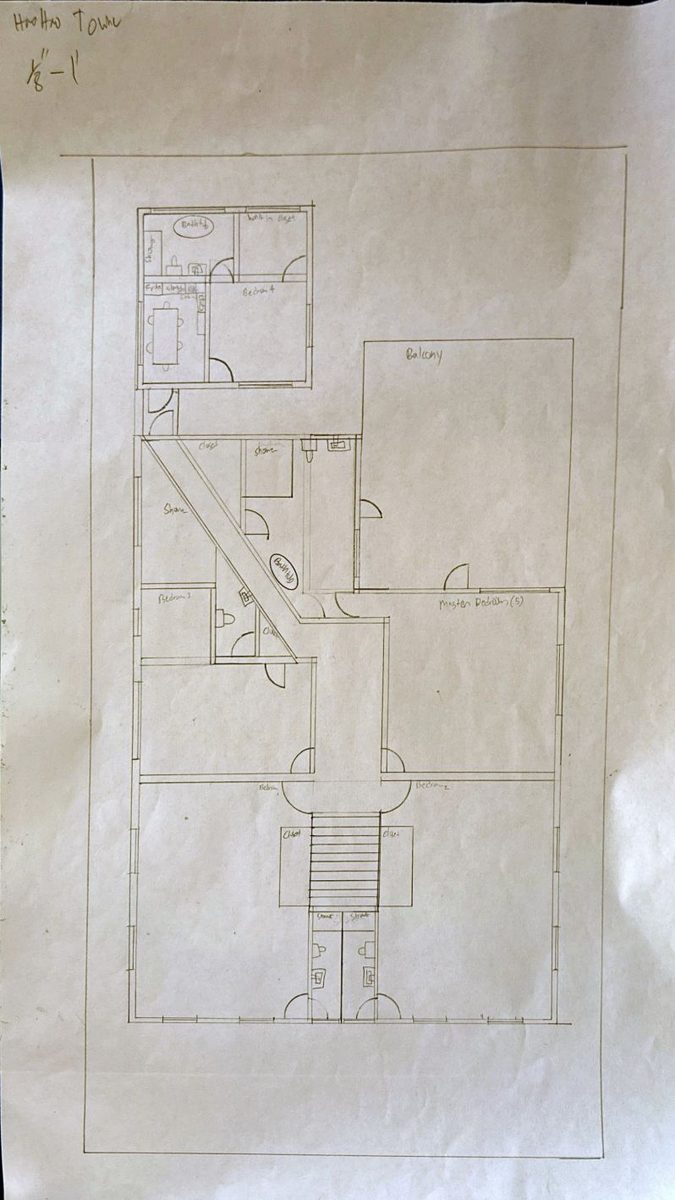

Pencil house plan with rooms, balcony and stair — **[ 09 ]**House plan · 1/4 in = 1 ft · rooms, balcony and stair

Then, the building

[ Work ]

The same method runs through the ten projects: draw the site, draw the precedent, draw the section, and only then build the model. The drawings here are the part of that loop that never makes it onto a project page.
